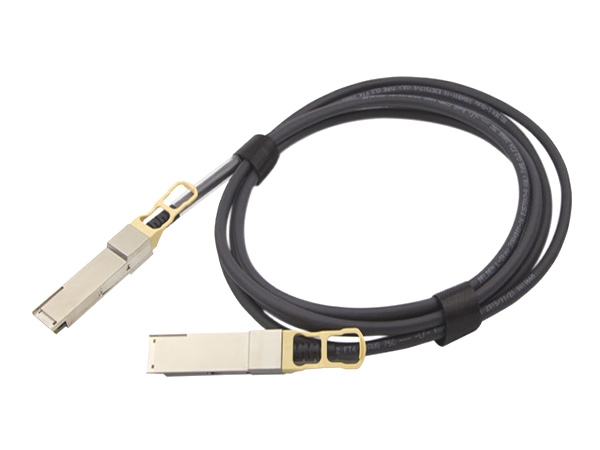

40G QSFP+ DAC

< >

40G QSFP DAC

Product Features

Hot-pluggable QSFP+ form factor

4-Channel Full-Duplex Passive Copper Cable Transceiver

Support multi-gigabit data rates 1G to 10Gb/s each channel

Maximum aggregate data rate: 40Gb/s (4 x 10Gb/s)

Operating case temperature: 0 to 70 °C

RoHS 6 compliant

Applications

40 Gigabit Ethernet

Fibre Channel

Data Center
Data Storage

USource 40G QSFP+ Passive Copper Cables are high performance，cost effective I/O solutions for 40G LAN, HPC and SAN applications. The QSFP+ passive copper cables are compliant with SFF‐8436, QSFP+ MSA and IEEE P802.3ba 40GBASE‐CR4. It is offer a low power consumption，short reach interconnect applications. The cable each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.

40G QSFP+ DAC
Part No.	Form A	Form B	Cable type	Data rate	Cable length
UQFP-DAC-01	QSFP+	QSFP+	Twinax	40Gbps	1m
UQFP-DAC-02	QSFP+	QSFP+	Twinax	40Gbps	2m
UQFP-DAC-03	QSFP+	QSFP+	Twinax	40Gbps	3m
UQSFP-DAC-01	QSFP+	4x SFP+	Twinax	40G to 4x 10G	1m
UQSFP-DAC-02	QSFP+	4x SFP+	Twinax	40G to 4x 10G	2m
UQSFP-DAC-03	QSFP+	4x SFP+	Twinax	40G to 4x 10G	3m
UQSFP-DAC-05	QSFP+	4x SFP+	Twinax	40G to 4x 10G	5m
